Spice Labels and Spice Racks

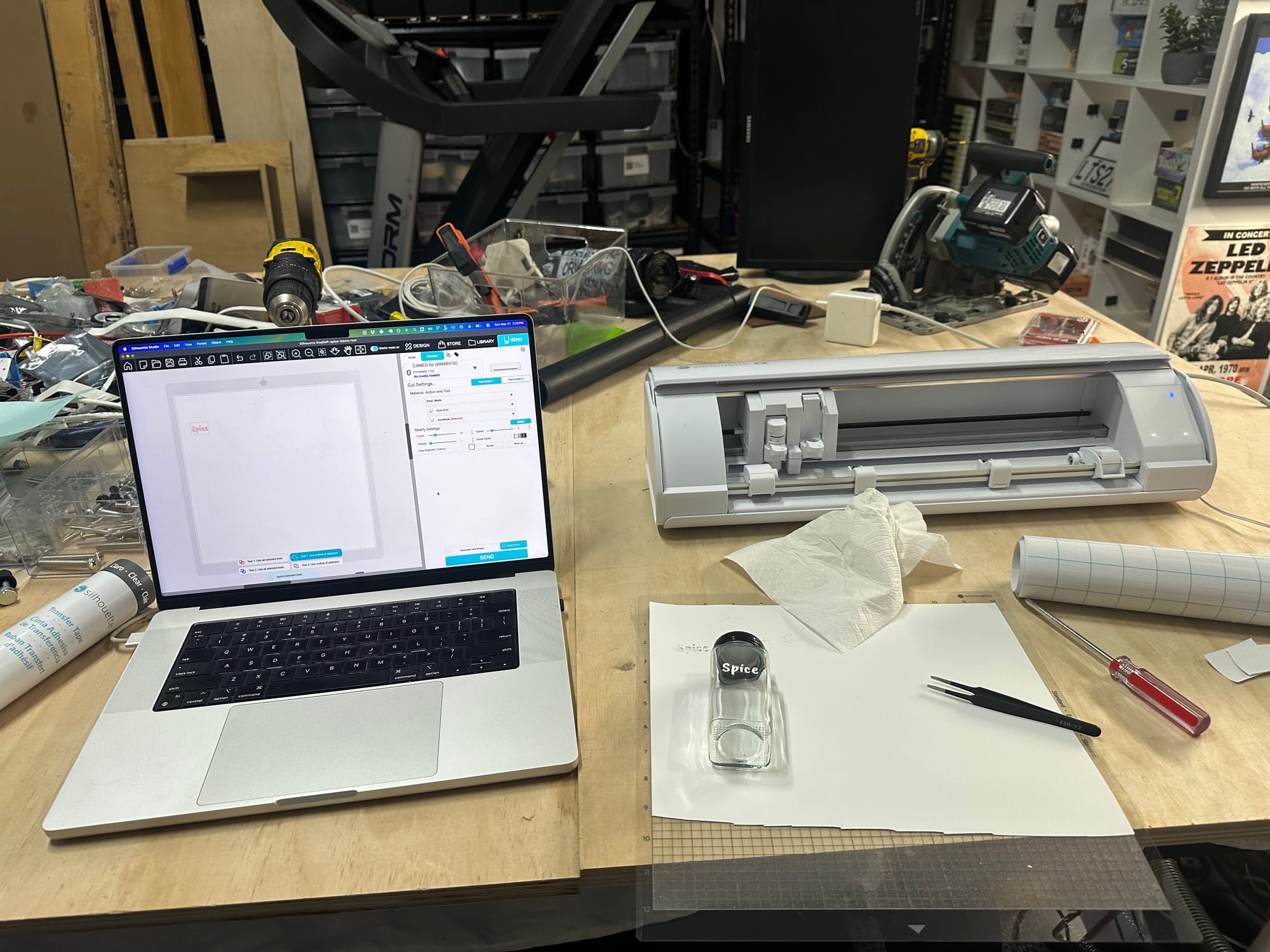

I bought two boxes of these spice jars: STORFEX 24-Pack 120ml Glass Spice Jars. Then I used my Silhouette CAMEO5α cutting machine to make some vinyl labels. I used the Caveat Brush font from Google Fonts.

It took a little while to figure out how to use the cutting machine, the Silhouette Studio design software, and the transfer tape to transfer letters. Here's my first test:

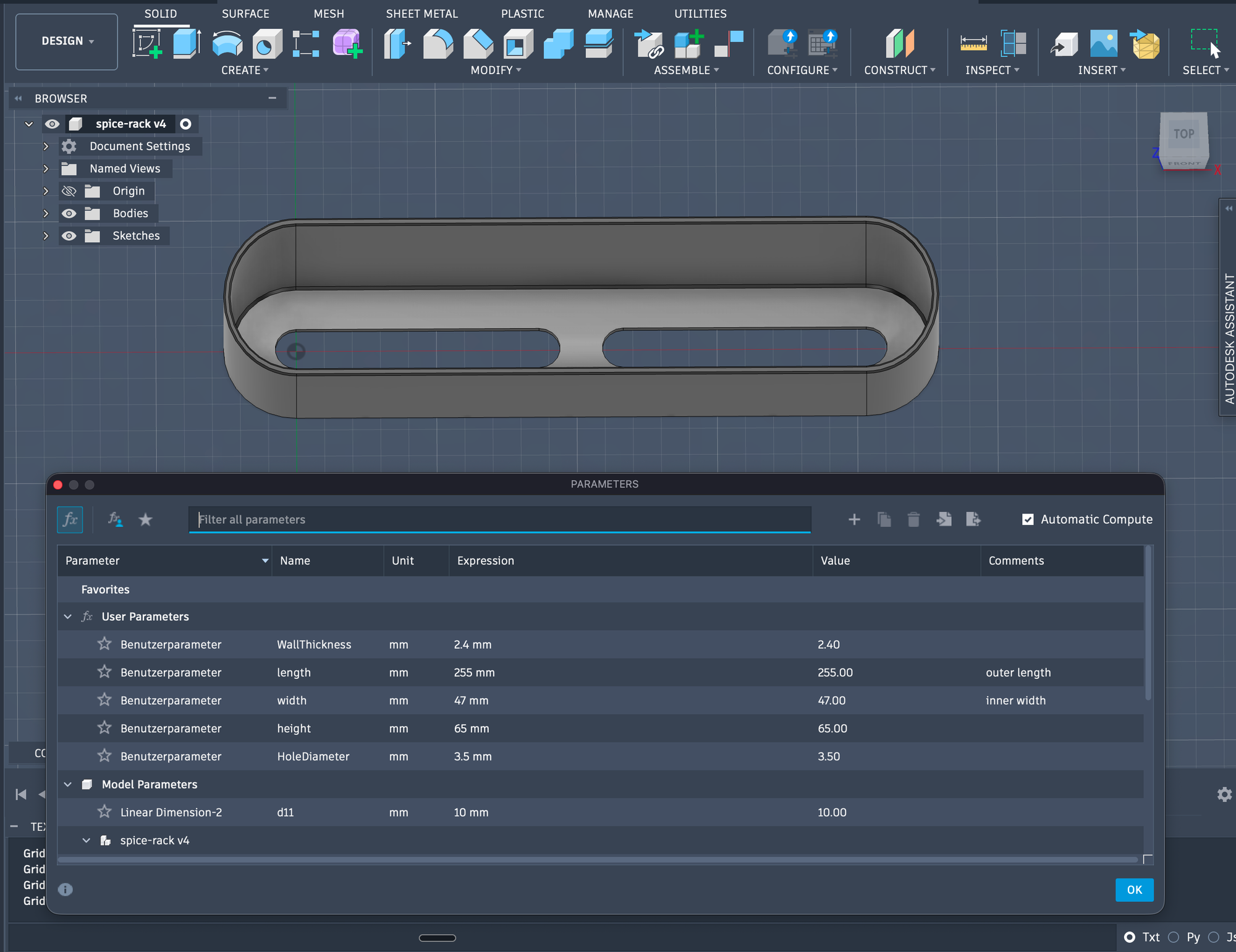

I found this "Simple door mounted spice rack design" on Printables. They included an Autodesk Fusion design file so I could change the parameters and make it fit our spice jars perfectly.

If you have these same spice jars, they are 45.2mm wide and 104mm tall. I set the length parameter to 255mm, which is the maximum print size for my 3D printer (Bambu Lab X1C). This length comfortably fits 5 of these spice jars.

And then my 3D printer broke. You can read about how I fixed it here:

Fixing a Bambu Lab X1C Error: “Extruding filament failed. The extruder might be clogged.”

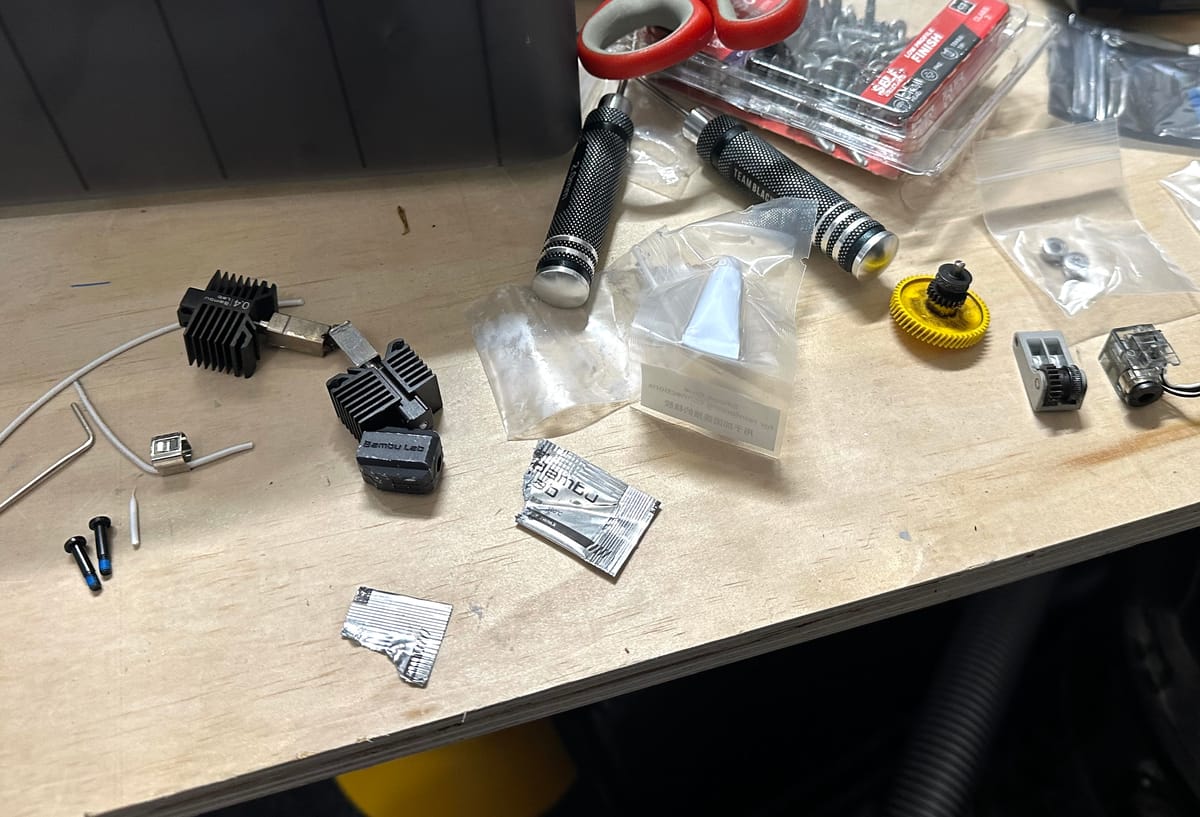

My 3D printer broke. No matter what I tried, I couldn’t get past this error: “Extruding filament failed. The extruder might be clogged.” I took apart the extruder gear assembly to check for clogs: I inspected the little magnet on the filament sensor and tried flipping it around (a tip

Made By NathanNathan Broadbent

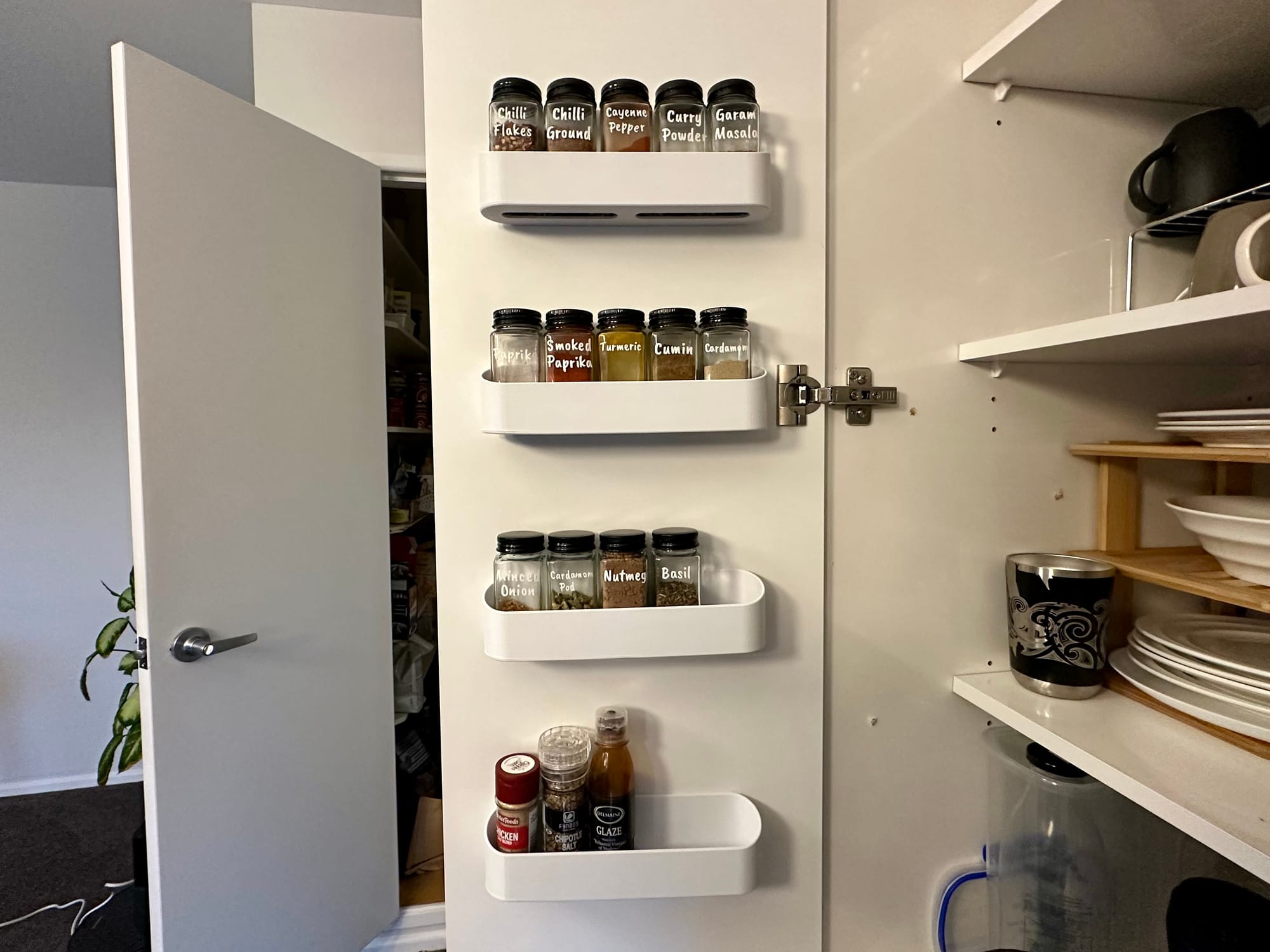

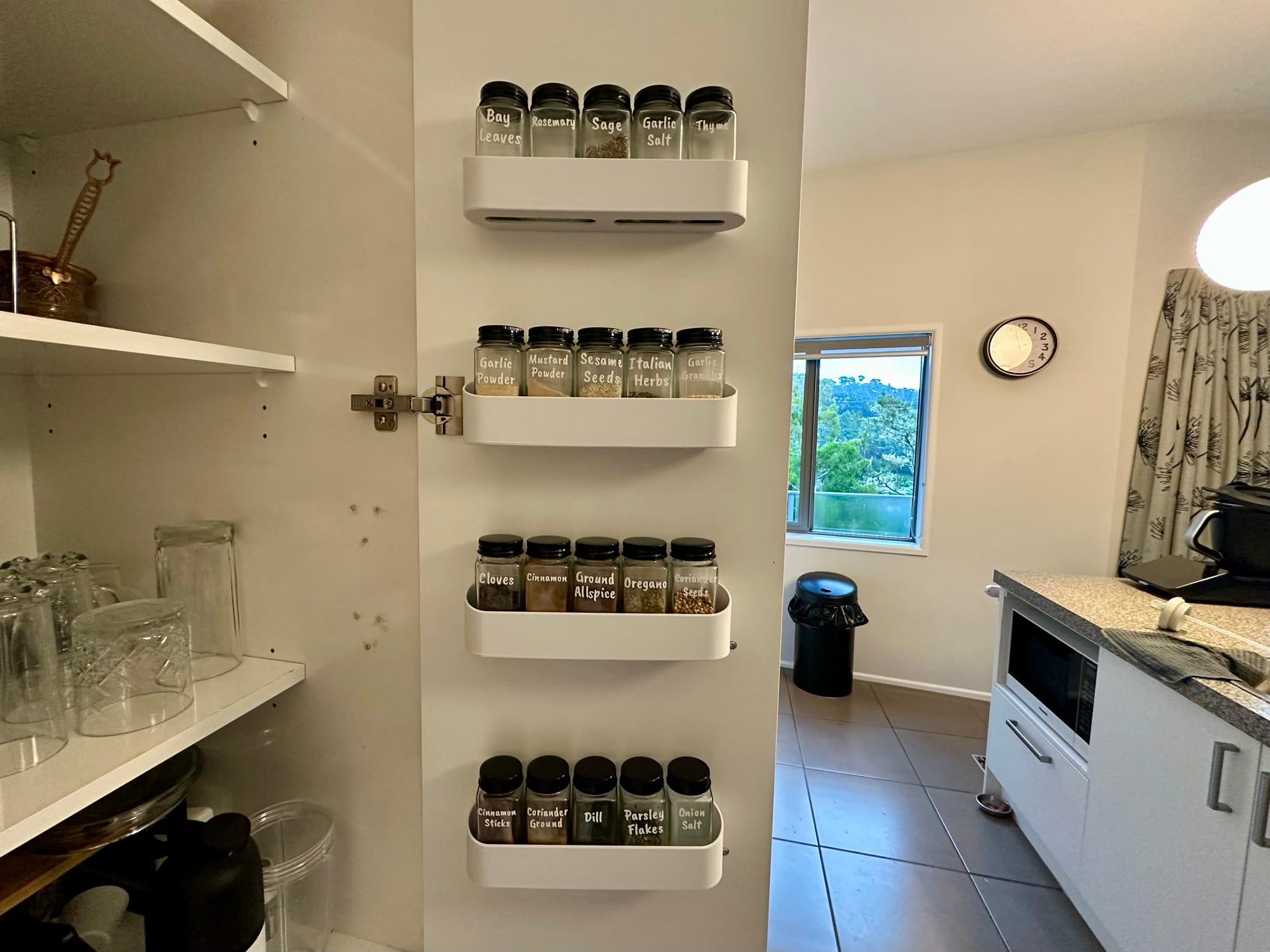

Here are the spice racks, attached to the inside of our pantry doors:
